Standard or custom components for plastic molds
Taiyou is a trusted precision components manufacturing company delivering standard or custom components of injection mold with expert engineering services.
Ejector pins and sleeves / Ejector Blades /Pins /Bushings /Pillars
Slides / Locks / Retainers
Stripper / Wear plates
Coulplers /Date insert / month stamp

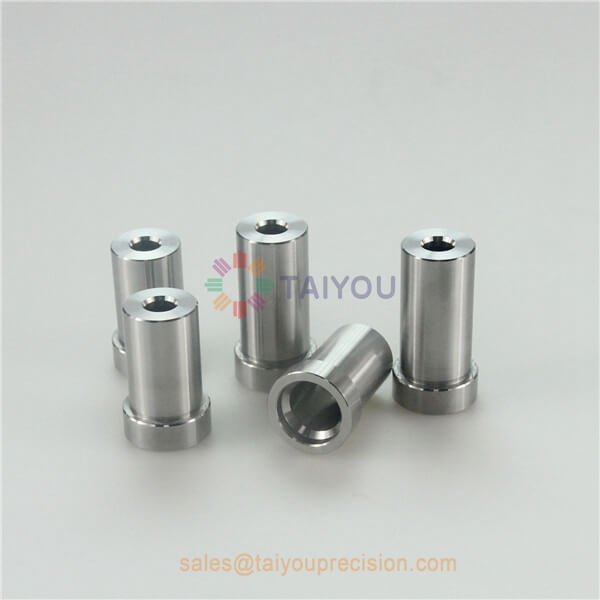

HASCO standard guide bush
Guide pillar and guide bush: The guide pillar and guide bush align the fixed and moving halves of a mold in each cycle. The material cases are usually made of medium carbon steel and will have higher hardness.

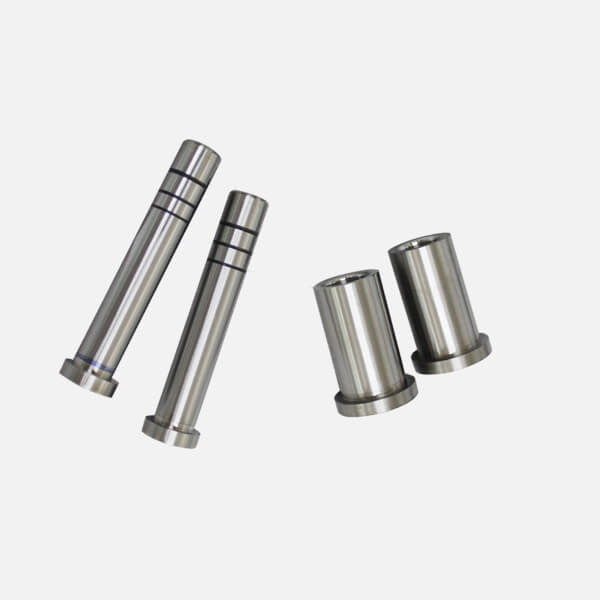

Custom Guides and bushes
Ejector guide pillar and guide bush:These components ensure the alignment of the ejector assembly so that the ejector pins are not damaged. The guide pillar typically has higher hardness than the guide bush.

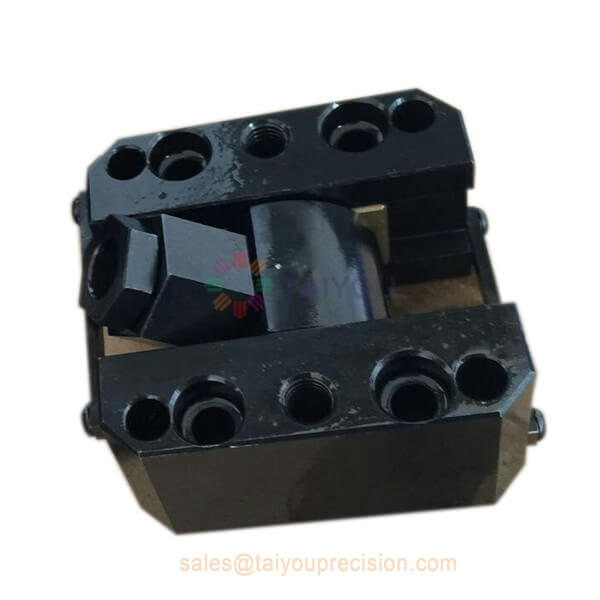

Adjustable Slide core guide unit
Oil Free Slide Unit for Loose Core in plastic mold. Material: S55C+SCM440+CAC304+graphite+SS400

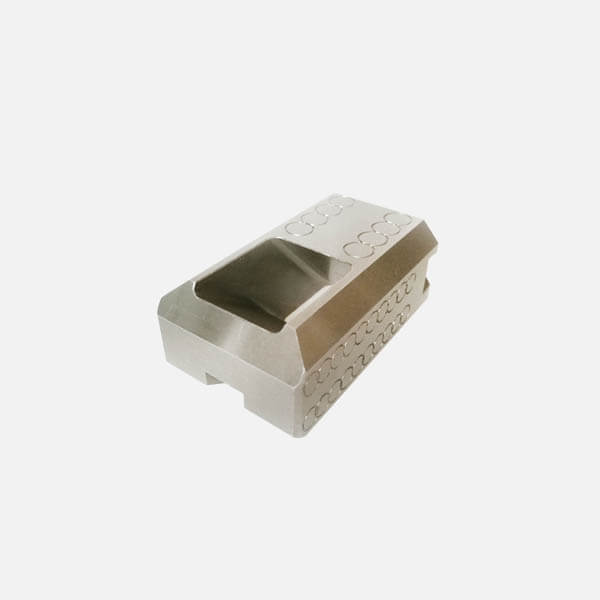

Custom slide carriage
Inclined sliding carriage,Custom slide carriage / Slide retainer with oil groove

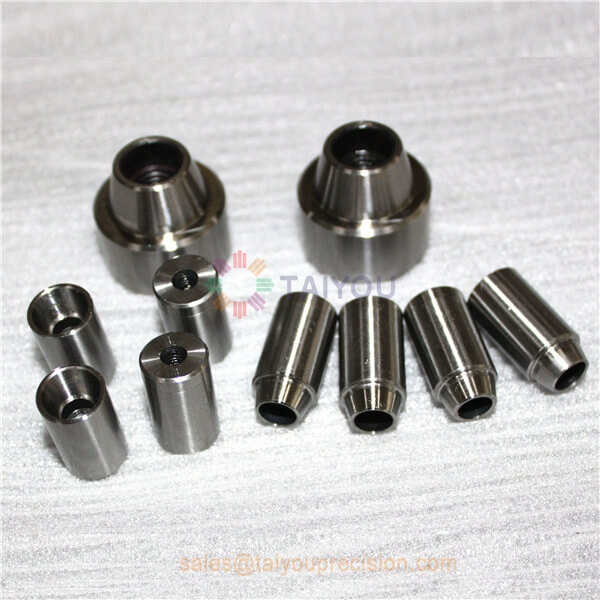

Taper pin sets
Tapered locating pin sets are used for for locating workpieces in fine tolerance and also to be used as stops and feet. Material: SKD11.

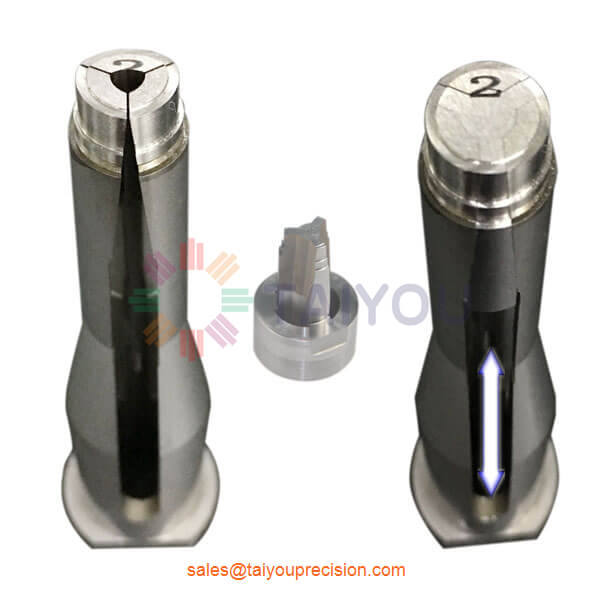

Collapsible cores (mini cores)
collapsible cores can increase your profit. You can get: simplified, smaller molds, faster cycle time, less maintenance, smaller force, less operations, improved part quality etc.

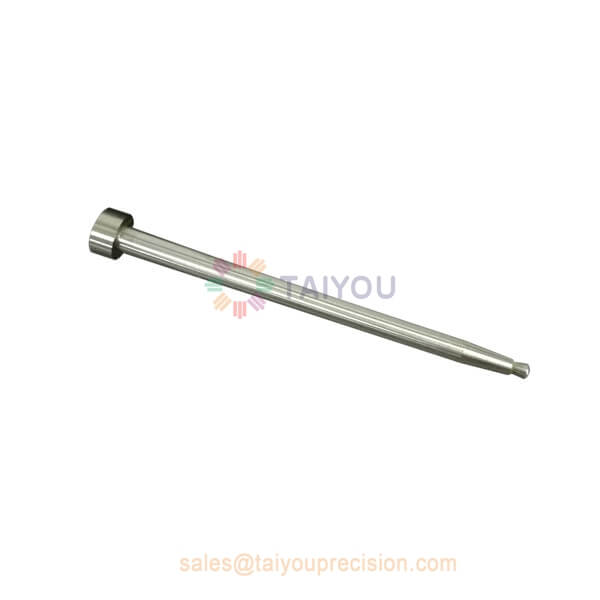

Hardened Runner lock pin
Runner lock pins are an pulling runner so the gate can be cut off from the product, runner lock pin fitted with a straight gate position, the head planted on the top plate, while in the body mounted on the cavity plate up to the top plate.
