Core insert machining
Taiyou offers precision CNC machining, CNC lathe, Grinding work for Custom Cores ,Rotating Cores, custom core pins, core inserts, core blocks of plastic molds. Application: automotive , electronics, medical industries.

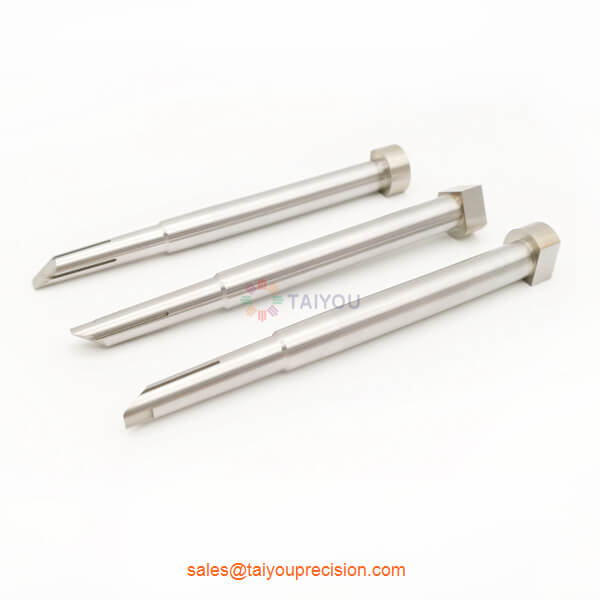

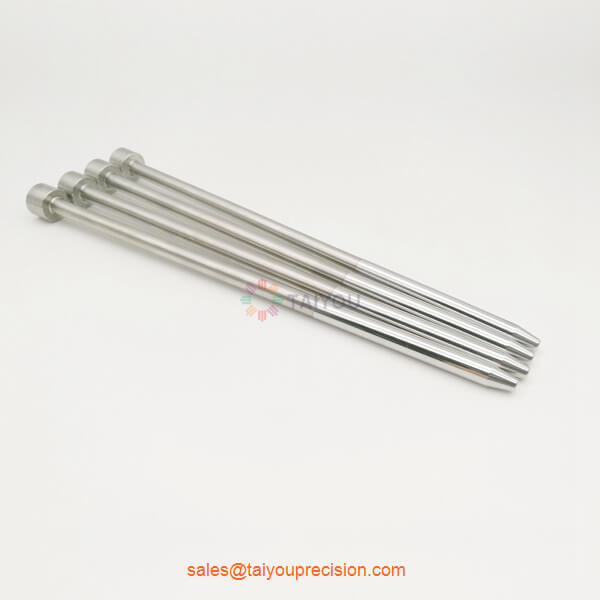

CNC machined Core pins
Special CNC machined core pin with thread and shoulder.Material:M2, H13, S136,SKH51,SKD61,1.2344, 1.3343, DH2F,SUS440C

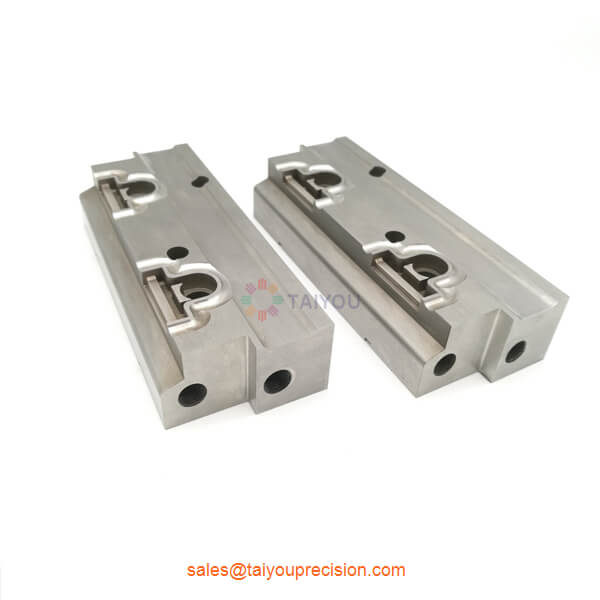

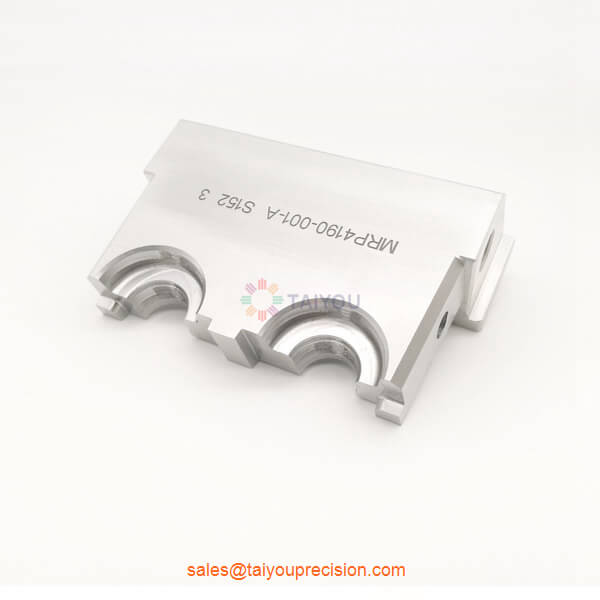

Core insert of plastic mold
Mold insert (empreinte-fixe) for plastic mold. Material: Z40CDV5 - TTh:52-54HRc. Export to France.

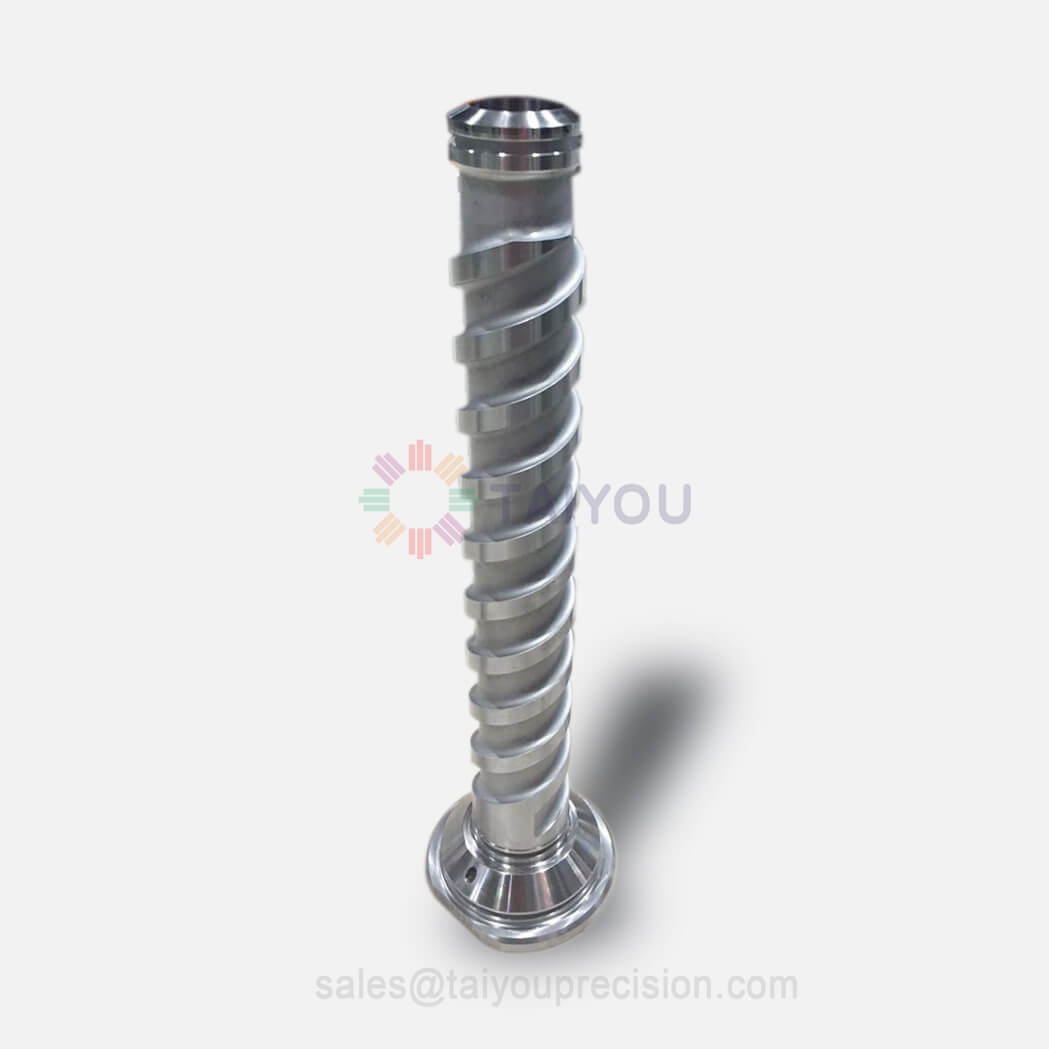

Hot-work steel spiral core pin
Spiral core pin is used in plastic mold as a rotating core. It will leave the plastic part by turning out spirally.

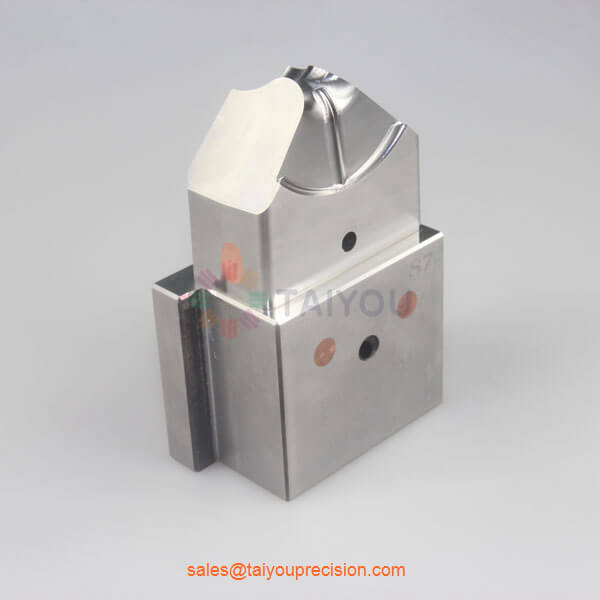

Slide core insert
Taiyou offers a wide range of machining methods for plastic mold insert with various tool steel. This is a slide insert made of SKH51 with copper as self-lubricant element.

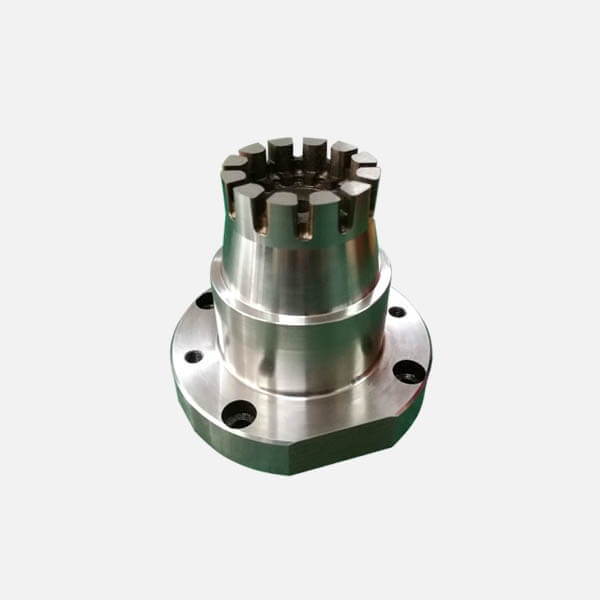

Core Insert CNC machining
Precision core insert for automotive indsutry. Material: M340.
Taiyou Precision is professional at CNC lathe and milling for die mold parts. Please send CAD data which workable with softwares of Auto-CAD,Solidworks, Pro-E,UG etc

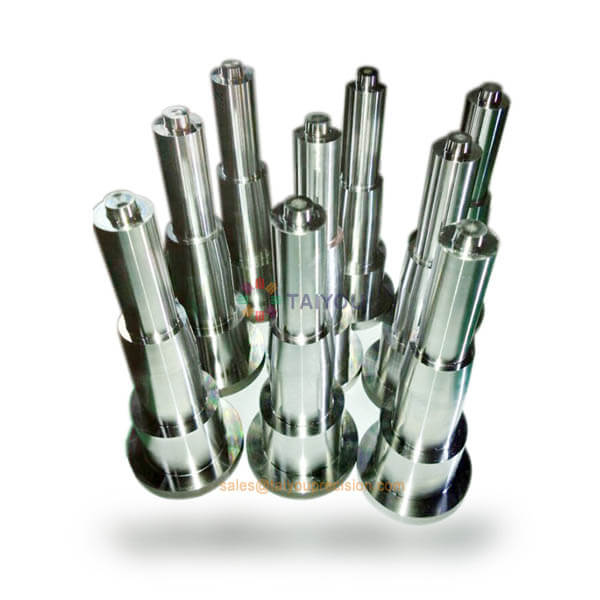

High gloss Core pin of plastic mold
Fabricated with CNC lathe, High gloss Core pins are fixed elements in the mold that creates a void in the plastic molding part.

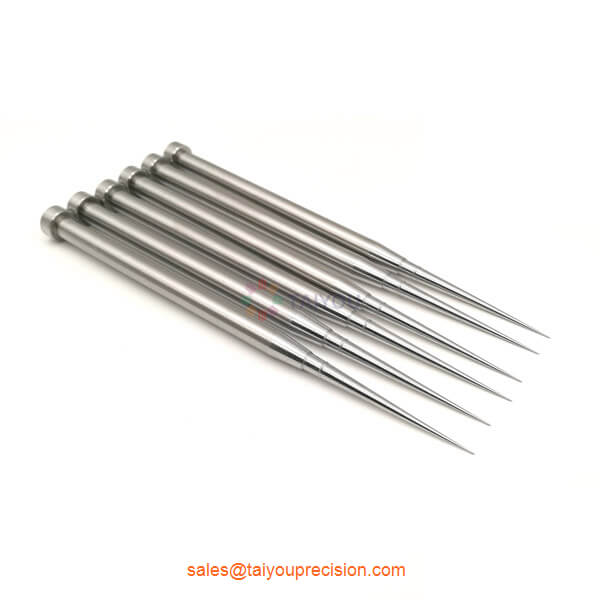

broche parlie fixe
Custom tooling for medical plastic molding industry. Special careful grinding at the tiny tip.
Core pin of plastic mold
Core pin is a fixed element in the mold that creates a void in the plastic molding part.

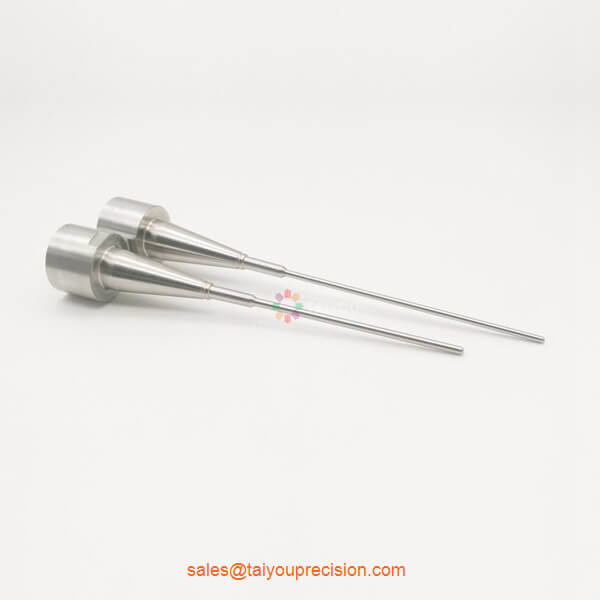

Core pin for medical tooling
Core pin (Injection mold components) for medical industry.Precision +/-0.002mm.
Ready to find out more?
Drop us a line today for a free quote!
